Home Agricultural Attachments
Up to 8%
Cubicle Bedder
Biddy Cubicle Bedders
Biddy Cubicle Bedders
Biddy Cubicle Bedders
  • Cubicle Bedder
  • Biddy Cubicle Bedders
  • Biddy Cubicle Bedders
  • Biddy Cubicle Bedders

Biddy Cubicle Bedders

£ 5,310 – £ 6,235Price range: £ 5,310 through £ 6,235

Clear
Product total
Options total
Grand total
Grand total incl. VAT
or
Wishlist Please, enable Wishlist.
SKU: N/A
Category: Agricultural Attachments
Tag: Feeding and Bedding
Share: Facebook Twitter Tumblr Linkedin
Description
Additional information
Specifications
Available Sizes
Images

Features and Benefits

The Biddy Cubicle Bedder has been designed to bed cubicles in a fast, efficient way.

The cubicle bedder can bed a cattle house in minutes, much quicker than using manual techniques. The bedder can also reduce material usage up to 50% as it spreads an even amount of material throughout the process.

The rate of material flow to the conveyor belt can be infinitely adjusted using the adjustment flow control plates. This will reduce the amount of material released into the cubicles allowing the operator to have complete control of the material.

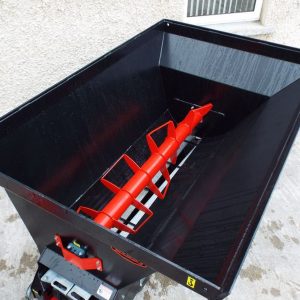

Equipped with an agitator on the inside of the hopper the material can be directed onto the conveyor belt which can be dispensed from either side. The agitator also prevents material from bridging to the inside of the hopper.
The bedder is provided with dual spoke drums as standard which prevent the material clogging under the belt. This reduces maintenance and unnecessary wear of the conveyor components.

The spoke drums are fixed to line-ar bearings which can adjust to tension and align the conveyor belt.

Weight N/A
Dimensions N/A
Cubic Capacity

0.8 m3, 1.3 m3, 1.6 m3, 2.2 m3

Specifications

Specification

CB 0.8

CB 1.3

CB 1.6

CB 2.2

Bottom Cutting Edge

12mm
Hardox

12mm
Hardox

12mm
Hardox

16mm
Hardox

Width of discharge belt

315mm

315mm

315mm

315mm

Applications

The cubicle bedder can be used for bedding with sawdust, chopped straw, paper, sand and lime. In addition the machine can be used for dry feeding and can also be adapted to dispense drainage stone.

Options / Extras

Flow control value
Three point linkage
Hydraulic tipping frame

Notes

A 3rd hydraulic function is required to operate this equipment.

Available Sizes

Cubicle Bedder Specs

Depth (mm)

Height (mm)

Width (mm)

 Weight (kg)

 Cubic Capacity (m3)

CB 0.8

1040

1000

1650

430

0.8

CB 1.3

1185

1125

1855

645

1.3

CB 1.6

1250

1250

2060

760

1.6

CB 2.2

1250

1250

2460

880

2.2

Images

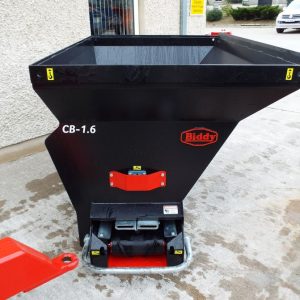

Biddy Cubicle Bedders
Biddy Cubicle Bedders
Biddy Cubicle Bedders
Biddy Cubicle Bedders
Biddy Cubicle Bedders
