| Specification |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
5.5 |
6.0 |
6.5 |
| Bottom Cutting Edge (300 x 30mm Hardox) |
|
|
|
|
|
|
|
|
| Side Cutting Edge (25mm Hardox) |
|
|
|
|
|
|
|
|
| Reversible Cutting Edge (300 x 25mm Hardox) |
|
|
|
|
|
|
|
|
| All Pins and Bosses (EN19) |
|
|
|
|
|
|
|
|
Sale

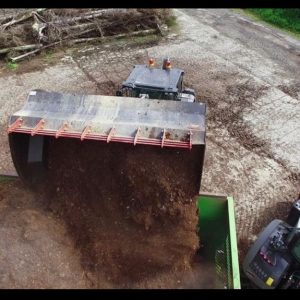

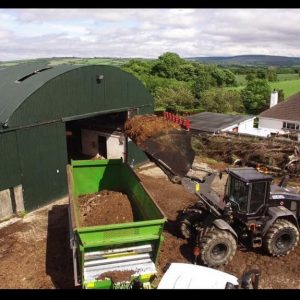

Biddy Wheeled Loader High Tip Buckets
£ 8,340 – £ 15,345
Features and Benefits
- Rear spill guards as standard to protect material falling over the cradle, hoses and quick hitch.
- Greedy bars as standard to maximise material handling.
- Heavy duty welded heel plate protects the rear frame of the cradle on concrete surfaces.
- Relief valve for hydraulic cylinder protection if the system is exposed to excess pressure.
- Swivel bearing in hydraulic cylinders for correct alignment.
- Cushioned Rams as standard for smoother operation and reduced stress and fatigue.
- Reversible bolt on cutting edge as standard, made from Hardox 500.
- Other sizes, possibilities and options are available on request.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Cubic Capacity | 3.0 m3, 3.5 m3, 4.0 m3, 4.5 m3, 5.0 m3, 5.5 m3, 6.0 m3, 6.5 m3 |
Specifications
Applications
Suitable for non – free flowing materials such as Waste, Coal, Sand and Gravel
Notes
A 3rd hydraulic function is required to operate this equipment.
ISO Linkage is mounted as standard, designed to suit 8 – 17 tonne loaders with an ISO quick hitch.
Alternatively linkages can be made to suit specific machine requirements.
Available Sizes
|
Specs |
Depth (mm) |
Height (mm) |
Width (mm) |
Weight (kg) |
Cubic Capacity (m³) |
|
3.0m3 |
1850 |
1450 |
2800 |
1500 |
3.0 |
|
3.5m3 |
1850 |
1450 |
2800 |
1650 |
3.5 |
|
4.0m3 |
1850 |
1620 |
3000 |
1800 |
4.0 |
|
4.5m3 |
1850 |
1620 |
3000 |
1950 |
4.5 |
|
5.0m3 |
2070 |
1725 |
3000 |
2100 |
5.0 |
|
5.5m3 |
2070 |
1725 |
3000 |
2265 |
5.5 |
|
6.0m3 |
2070 |
1855 |
3200 |
2430 |
6.0 |
|
6.5m3 |
2070 |
1855 |
3200 |
2595 |
6.5 |
