| Specification |
2.3m / 7ft 7” |
2.4m / 7ft 11” |
2.5m / 8ft 2” |
2.6m / 8ft 6” |
| Bottom Cutting Edge – 20mm Hardox |
|
|
|
|
| Side Cutting Edge – 12mm Hardox |
|
|
|
|
| All Pins – EN19 |
|
|
|
|
| Bosses – EN8 |
|
|
|
|
| Base Thickness – 8mm |
|
|
|
|
Up to 12%

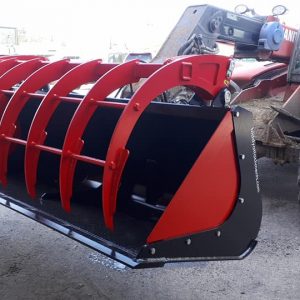

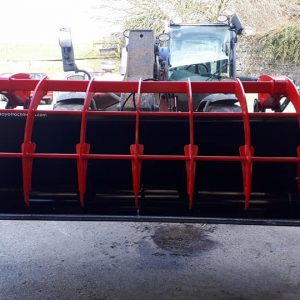

Biddy Waste Grabs
Price range: £ 3,810 through £ 4,305
Wishlist Please, enable Wishlist.Features and Benefits
The Biddy heavy duty waste grab has been developed for the agricultural, waste and recycling industries. Designed for use with telescopic handlers and wheeled loaders, the waste grabs high tensile Hardox steel material provides high strength and durability.
The waste grab has an increased capacity due to the grab feature which reduces waste and material handling times. In addition, the bucket grab can be made with removable bolt on sides so that objects greater than the width of the bucket can be easily handled. Optional bolt on toe plates are available and will increase the service life and durability of the bucket. Other sizes, possibilities and options are available on request. i.e. light weight tractor loader version upon request.
The waste grab has an increased capacity due to the grab feature which reduces waste and material handling times. In addition, the bucket grab can be made with removable bolt on sides so that objects greater than the width of the bucket can be easily handled. Optional bolt on toe plates are available and will increase the service life and durability of the bucket. Other sizes, possibilities and options are available on request. i.e. light weight tractor loader version upon request.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Width |
Specifications
Applications
Ideal for a large range of agricultural uses including the handling of silage, maize & manure, handling of commercial waste/ recycling, bedding, loading etc.
Options/ Extras
• Weld on linkages
• Bolt on linkages
• Removable sides
• Double or single bevel Bolt on Hardox cutting edge (Ask for more details)
• Other sizes and
Notes
A 3rd hydraulic function is required to operate this equipment. Grabs are made from Hardox 450 material for increase strength and durability.
Available Sizes
|
Bucket Grab Specs |
Depth (mm) |
Height (mm) |
Width (mm) |
Weight (kg) |
Cubic Capacity (m³) |
|
2.3m / 7ft 7″ |
1150 |
1140 |
2300 |
750 |
1.5 |
|
2.4m / 7ft 11″ |
1150 |
1140 |
2430 |
785 |
1.6 |
|
2.5m / 8ft 2″ |
1150 |
1140 |
2630 |
820 |
1.7 |
|
2.6m / 8ft 6″ |
1150 |
1140 |
2630 |
845 |
1.8 |
Images
