Biddy Grading Beams
Biddy Grading Beams
Biddy Grading Beams
Biddy Grading Beams
  • Biddy Grading Beams
  • Biddy Grading Beams
  • Biddy Grading Beams
  • Biddy Grading Beams

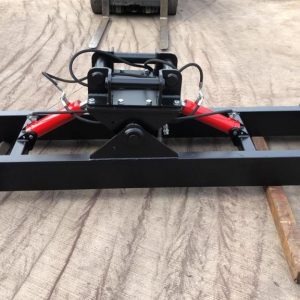

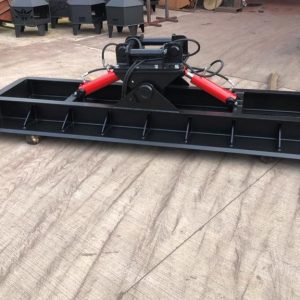

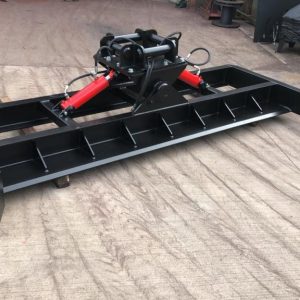

Biddy Grading Beams

£ 2,055 – £ 2,285

Clear
Product total
Options total
Grand total
Grand total incl. VAT
or
SKU: N/A
Category: Excavator Attachments
Tag: Land Conditioning
Share:
Description
Additional information
Specifications
Available Sizes
Images
Reviews (0)

Features and Benefits

Excavator grading beams offer a highly accurate and efficient solution for using your excavator to complete landscaping tasks to the best finish possible.  Featuring a rigid and strong steel structure, the grading beams are ideal for use on a range of hard, soft, dry or wet materials such as earth or aggregate.
Weight N/A
Dimensions N/A
Specs

2.1m, 2.6m

Specifications

They are ideally suited for use with modern tiltrotators, but can be supplied with standard welded, bolt on or 4-way linkages to suit traditional UK quick hitches. The 2500mm grading beam is a popular option for 8 and 14 tonne class excavators.

Can be supplied with 4 way linkage or standard, up to customer preference. Also as stated above they can have the option of a roller supplied on the rear of attachment with levelling poles.

Options:

  1. Fixed head stock
  2. Rear compaction roller
  3. Laser levelling/grading poles

Available Sizes

Specs

Depth (mm)

Depth of working area (mm)

Height (mm)

Width (mm)

Width of working area (mm)

Weight (kg)

Cutting edge width (mm)

4 – 14T

1157

575

517

2326

2100

402

2100

6 – 16T

1157

575

517

2826

2600

495

2600
