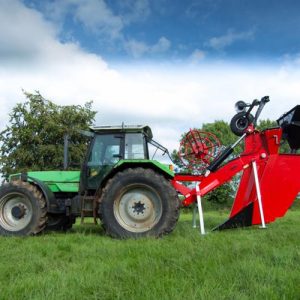

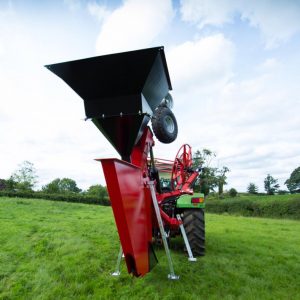

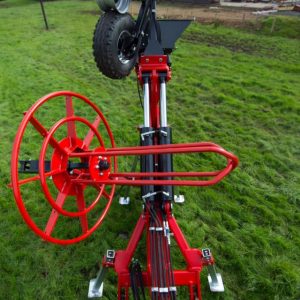

Biddy Tile Plows
£ 16,045 – £ 17,310
Features and Benefits
All our YieldMaster Tile plows are manufactured from high grade S355 and HARDOX Steel, allowing us to achieve over twice the tensile strength with half the machine weight.
Thinner profile shank makes it easier to pull through the soil when installing tile from 3″ right up to 10″.
Contoured boots are manufactured to match the tile size and in turn maintains a tile trench from beginning to end for accurate pipe installation.
Zero deflection design produces superior grade control with the tile exit point directly below the hinge point of the plow while the proportional valve makes crucial adjustments to keep your plow on grade. We also use the very best Laser or GPS Grade Controls to insure the perfect grade control.
Specifications
| Configurable Equipment |
TP 1.2 |
TP 1.7 |
| 3 point linkage drawbar and shank assembly |
|
|
| Laser or GPS Grade Control C/W Proportional valve |
|
|
| Tile boot options: 3″ 4″ 5″ 6″ |
|
|
| Tile boot options: 4″ 5″ 6″ 8″ 10″ |
|
|
| Hydraulic Tile feeder wheel |
|
|
| Gravel Hopper |
|
|
| Gravel Hopper extensions |
|
|
| Sawdust/sand hopper C/W Screw auger |
|
|
| Hydraulic Tile real |
|
|
| Replaceable Shank wear parts |
|
|
| Other models/sizes available on request |
|
|
Available Sizes
|
Machine Spec |
Length (mm) |
Width (mm) |
Height (mm) |
Shank (mm) |
Linkage (mm) |
Weight full spec (KG) |
Max Plow Depth |
|
TP 1.2 |
3950 |
2430 |
3050 |
35mm HARDOX |
CAT3 |
2150 |
1200 |
|
TP 1.7 |
4130 |
2430 |
3550 |
40mm HARDOX |
CAT3 |
2450 |
1700 |
