Home Excavator Attachments
Sale
Biddy Tilt Buckets
Biddy Tilt Buckets
Biddy Tilt Buckets
Biddy Tilt Buckets
  • Biddy Tilt Buckets
  • Biddy Tilt Buckets
  • Biddy Tilt Buckets
  • Biddy Tilt Buckets

Biddy Tilt Buckets

£ 1,760 – £ 4,495

Clear
Product total
Options total
Grand total
Grand total incl. VAT
or
SKU: N/A
Category: Excavator Attachments
Tag: Material Handling
Share: Facebook Twitter Tumblr Linkedin
Description
Additional information
Specifications
Available Sizes
Images
Reviews (0)

Features and Benefits

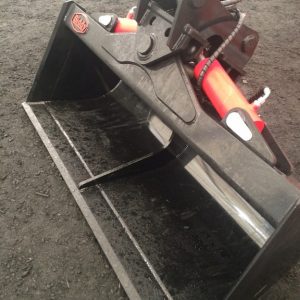

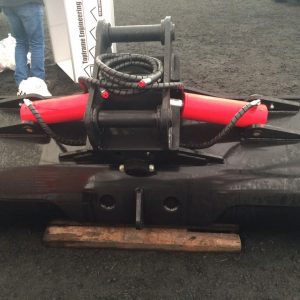

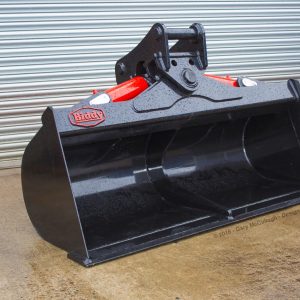

The Biddy heavy duty hydraulic tilt buckets are both designed and manufactured in Ireland. Each bucket is CE marked to ensure they will perform in the very toughest of environments. This heavy duty tilt bucket has two hydraulic cylinders for maximum control allowing the bucket tilt 35° in each direction. The sides of the tilt bucket are tapered 5° to allow for the best possible material flow.Every bucket is made to order for all makes and models of excavators ranging from 4 – 22 Tonne. Other sizes, possibilities and options are available on request.

Difference from competitors

• 5 degree Tapered sides for better material tipping
• Internal rib for increased bucket strength.
• Complete 45 degrees tilt in either direction.
• Dual heavy duty hydraulic cylinders for excellent holding power.
• Hardox material used throughout the design.
• Large capacity bucket.

Weight N/A
Dimensions N/A
Cubic Capacity

4-6 ton, 6-8 ton, 10-14 ton, 20-22 ton

Specifications

Specification

4 – 6 tonne

6 – 8 tonne

10 – 14 tonne

20 – 22 tonne

Bottom Cutting Edge (Hardox)

16mm

16mm

20mm

25mm

Side Cutting Edge

12mm

12mm

16mm

20mm

Pivot Pin (EN19)

50mm

60mm

80mm

100mm

Non Wearing Bosses

EN8

EN8

EN8

EN8

Internal Rib

12mm

12mm

20mm

20mm

Applications

• General purpose
• Slope finishing
• Land clearing
• Waste handling
• Grading
• Road & Lane crowning

Options/ Extras

• Double or single bevel Bolt on Hardox cutting edge (Ask for more details)
• Flow Control Valves for easy adjustment of tilting speed (for excavators above 10 tonnes)

Notes

A two way flow hydraulic circuit is required to operate this equipment. The system is designed for an operating pressure of 100-150 Bar.
If bolt on cutting edge is required, welded cutting edge is reduced by 5mm in thickness.

Available Sizes

Tilt Bucket Specs

Depth (mm)

Height (mm)

Width (mm)

 Weight (kg)

 Cubic Capacity (m3)

4 – 6 tonne

545

830

1350

340

0.25

6 – 8 tonne

665

1000

1560

485

0.36

10 – 14 tonne

760

1080

1925

750

0.51

20 – 22 tonne

940

1350

2310

1045

1.05

Images

Biddy Tilt Buckets
Biddy Tilt Buckets
Biddy Tilt Buckets
Biddy Tilt Buckets
Biddy Tilt Buckets

Reviews

There are no reviews yet.

Be the first to review “Biddy Tilt Buckets” Cancel reply

Your email address will not be published. Required fields are marked


Related products

Agri High Tip Buckets
Clear
Agricultural Attachments

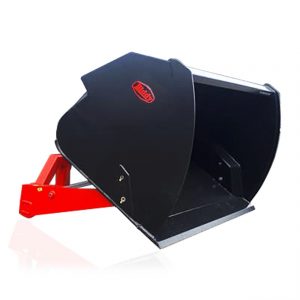

Biddy Agri High Tip Buckets
