| Specification |
3-6 |
6-10 |
10-17 |
18-22 |
| Full HARDOX 450 design |
|
|
|
|
| CAT style teeth |
|
|
|
|
| Dual cylinders |
|
|
|
|
| Check valves on hydraulic cylinder |
|
|
|
|
| 2 Pin bolt on linkage |
|
|
|
|
| Bolt on stubbing attachment |
|
|
|
|
| 3/2 Leg configuration |
|
|
|
|
| 4/3 & 5/4 leg configuration | ||||
| 360 Degree rotator |
Sale

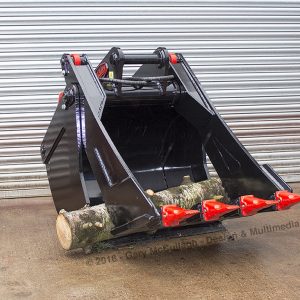

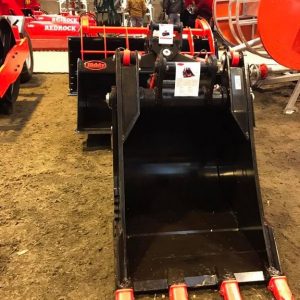

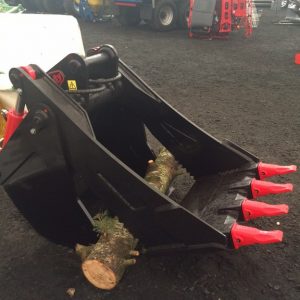

Biddy 4 in 1 Buckets
£ 2,605 – £ 8,540
Features and Benefits
The 4 IN 1 bucket has many features and benefits. The bucket can carry out various tasks such as Digging and Grading.
The bucket also acts as a grapple handling logs, rocks and scrap. The bucket uses Hardox material throughout for high strength, greater wear resistance and longer life.
The two powerful Hydraulic Cylinders have the ability to allow the bucket to grab items without having to change the excavator attachment.
The multifunctional 4 IN 1 bucket significantly reduces clearance and excavation time as these tasks can be carried out using the same attachment.
The bucket also acts as a grapple handling logs, rocks and scrap. The bucket uses Hardox material throughout for high strength, greater wear resistance and longer life.
The two powerful Hydraulic Cylinders have the ability to allow the bucket to grab items without having to change the excavator attachment.
The multifunctional 4 IN 1 bucket significantly reduces clearance and excavation time as these tasks can be carried out using the same attachment.
Notes
A two –way flow hydraulic circuit is required to operate this equipment.
Designed for operating Pressure (bar) 100 -150.
Specifications
Applications
The Hydraulic grapples can be used for various applications including:
• Demolition
• Clearing waste
• Sorting and handling
• Site clearance
• Ditching
• General excavation works
Available Sizes
|
4 IN 1 Specs (Tonne) |
Depth exc toe |
Height (mm) |
Width (mm) |
Weight (kg) |
Cubic Capacity (m³) |
|
3 – 6 |
780 |
770 |
600 |
230 |
0.18 |
|
6 – 10 |
1030 |
930 |
740 |
380 |
0.32 |
|
12 – 17 |
1280 |
1190 |
900 |
760 |
0.55 |
|
18 – 22 |
1280 |
1190 |
1250 |
980 |
0.90 |
