| Specification |
3-6 |
6-10 |
10-17 |
18-22 |
| Full HARDOX 450 design |
|
|
|
|
| CAT style teeth |
|
|
|
|
| Dual cylinders |
|
|
|
|
| Check valves on hydraulic cylinder |
|
|
|
|
| 2 Pin bolt on linkage |
|
|
|
|
| Bolt on stubbing attachment |
|
|
|
|
| 3/2 Leg configuration |
|
|
|
|
| 4/3 & 5/4 leg configuration | ||||
| 360 Degree rotator |
Sale

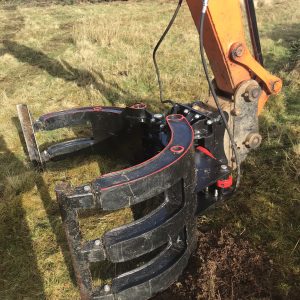

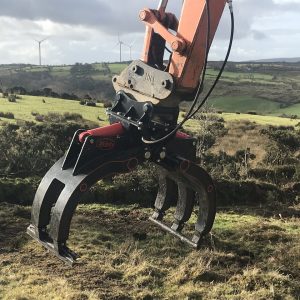

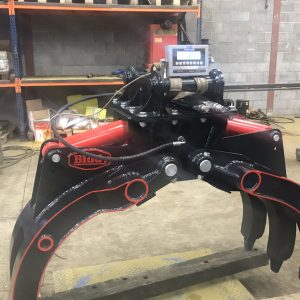

Biddy Hydraulic Grapples
£ 3,165 – £ 6,625
Features and Benefits
- Made completely from Hardox 450 steel allowing us to reduce the weight of the grapple by up 40% while maintaining the strength.
- Hydraulic cylinders have spherical bearings for perfect pin alignment reducing stress and increasing cylinder life.
- CAT style teeth
- Check valves on hydraulic cylinders to protect from hydraulic hose failure.
- Bolt on attachment for stubbing available
- 2 or 4 pin linkage available
- 4/3 & 5/4 leg configuration available
- 360 Degree rotator available
Specifications
Applications
The Hydraulic grapples can be used for various applications including:
• Demolition
• Clearing waste
• Sorting and handling
• Site clearance
• Ditching
• General excavation works
Available Sizes
|
Hyd Grapple Specs (Ton) |
Leg Centres (mm) |
Height Closed (mm) |
Height Opened (mm) |
Closed width (mm) |
Opened width (mm) |
Min. Clamp (mm) |
Depth (mm) |
Opened Toe centres (mm) |
Weight (KG) |
|
3 – 6 |
120 |
900 |
840 |
700 |
1030 |
80 |
620 |
850 |
310 |
|
6 – 10 |
150 |
1200 |
1140 |
795 |
1550 |
105 |
720 |
1360 |
510 |
|
10 – 17 |
150 |
1500 |
1440 |
980 |
1735 |
155 |
720 |
1540 |
650 |
|
18 – 22 |
200 |
1750 |
1650 |
1100 |
1830 |
200 |
960 |
1800 |
900 |
