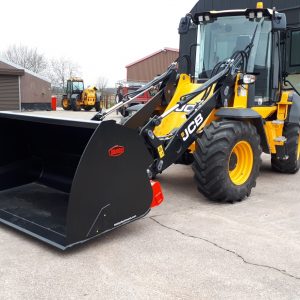

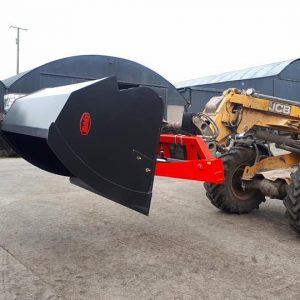

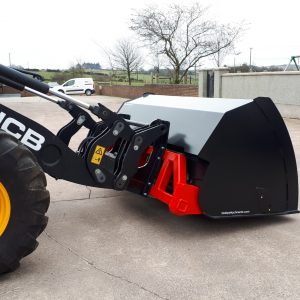

Biddy Agri High Tip Buckets
£ 3,705 – £ 4,175
Features and Benefits
Biddy Agri High Tip buckets are designed to provide an increased dump height, i.e. loading high sided vehicles.
The hydraulic cylinders are mounted at either side of the bucket leaving the inside of the bucket clear for more capacity. Our High Tip bucket has an increased discharge height of up to 1.7 metres above that obtained with a conventionally mounted standard
bucket.
Other sizes, possibilities and options are available on request.
The hydraulic cylinders are mounted at either side of the bucket leaving the inside of the bucket clear for more capacity. Our High Tip bucket has an increased discharge height of up to 1.7 metres above that obtained with a conventionally mounted standard
bucket.
Other sizes, possibilities and options are available on request.
Difference from competitors
- Heavy duty construction
- Hardox throughout for high wear resistance.
- EN24T bosses at pivot points resulting in longer
machine life.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Cubic Capacity |
Specifications
| Specification |
2.3m / 7ft 7” |
2.4m / 7ft 11” |
2.5m / 8ft 2” |
| Bottom Cutting Edge |
30mm |
30mm |
30mm |
| Side Cutting Edge |
12mm |
12mm |
12mm |
| All pins |
Pivot 40mm |
Pivot 40mm |
Pivot 40mm |
| Non Wearing Bosses |
EN8 |
EN8 |
EN8 |
| Pivot bosses |
EN24T |
EN24T |
EN24T |
Applications
• For loading high-sided trailers
• Low internal tipping where head-room is marginal
• Rapid tipping and return action
• The handling of sawdust, shavings and manure
Options/ Extras
• Weld on Linkages
• Bolt on linkages
• 2 piece split grab.
• Double or single bevel Bolt on Hardox cutting edge.
• Other sizes and possibilities are available on request
Notes
A 3rd hydraulic function is required to operate this equipment.
Available Sizes
|
Specs |
Depth (mm) |
Height (mm) |
Width over edge (mm) |
Weight (kg) |
Cubic Capacity (m³) |
|
2.3m / 7ft 7” |
1495 |
1170 |
2300 |
820 |
2.3 |
|
2.4m / 7ft 11” |
1495 |
1170 |
2400 |
860 |
2.4 |
|
2.5m / 8ft 2” |
1495 |
1170 |
2500 |
895 |
2.5 |
|
2.6m / 8ft 6” |
1495 |
1170 |
2600 |
930 |
2.6 |
