Home Agricultural Attachments
Sale

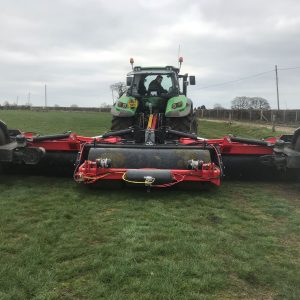

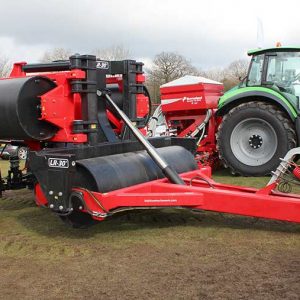

Biddy Land Roller
Biddy Land Roller
Biddy Land Roller
Biddy Land Roller
  • Biddy Land Roller
  • Biddy Land Roller
  • Biddy Land Roller
  • Biddy Land Roller

Biddy Land Rollers

£ 52,260 – £ 61,080

Clear
Product total
Options total
Grand total
Grand total incl. VAT
or
SKU: N/A
Category: Agricultural Attachments
Tag: Land Conditioning
Share: Facebook Twitter Tumblr Linkedin
Description
Additional information
Specifications
Available Sizes
Images
Videos
Reviews (0)

Features and Benefits

Biddy attachments are renowned for the design and production of machines that are not only well constructed but without doubt one of the heaviest on the market. The rigid frame is made from heavy wall structural tubing while the drums are manufactured from 34″ – 42″ inch diameter pipe with a 20mm wall thickness and equipped with over-sized shafts and bearings.Extra heavy duty joints and high quality hydraulic cylinders and bearings are just a few of the standard features incorporated into this machine. Our 3 section, heavy duty Landrollers have been designed for maximum flotation and even weight distribution across the full working width.Biddy Landrollers push down rocks, breakdown residue and level the ground for harvest, and subsequently reduce grain and yield losses. Rolling makes combining faster and easier, and there is less chance of picking up rocks or root clumps which can damage guards or expensive internal combine parts. With ever increasing pressure on farmers to get more ground covered in a shorter space of time, the Biddy flat land rollers are the ideal solution for the expanding farmer and contractor.

Weight N/A
Dimensions N/A
Working Width

9150 mm, 12200 mm

Specifications

Specification

LR30

LR40

Rear hydraulic wheel kit

✔

✔

LED lights

✔

✔

LED Outline markers

✔

✔

Soft ride transport system

✔

✔

Air brakes

✔

✔

10 stud stub axle

✔

✔

Air safety transport locks

✔

✔

UCF 100mm 4 hole Roller Shaft Bearings

✔

✔

650/50R22.5 BKT Ride max tyres

✔

✔

Steel fabricated mudguards

✔

✔

Hardox 500 throughout the design

✔

✔

Other models available on request

✔

✔

Available Sizes

Name

Length (mm)

Transport width (mm)

Transport width (mm)

Working width (mm)

Unladen Weight (TON)

Weight filled (TON)

Dia. roller (in)

LR 30
TR10

7985

2550

3050

9150

11.25 approx

+ 4.8 approx

34″ – 42″

LR 40
TR10

7985

2550

3050

12200

13.3 approx

+ 6.4 approx

34″ – 42″

Images

Biddy Land Roller
Biddy Land Roller
Biddy Land Roller
Biddy Land Roller
Biddy Land Roller
